Description

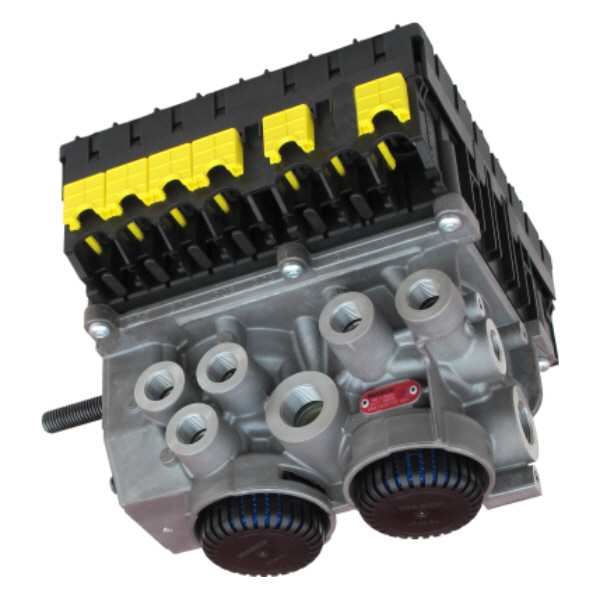

EBS Trailer Modulator 24 Volt

Distance between bolts: 70.0 mm
Max. operating pressure: 8.5 bar
Mounting: 2x M12
Port thread 1: M22 x 1.5 JED-152
Port thread 21: M16 x 1.5 JED – 152
Port thread 22: M16 x 1.5 JED – 152
Port thread 3: 2 Integrated Silencer
Port thread 4: M16 x 1.5 JED – 152
Port thread 5: M16 x 1.5 JED-152
Protection class: IP 6K9K
System: 2S/2M
Temperature range: -40°C to +65°C
Type: Standard
Version:TEBS E without PEM
Voltage: 24V
Calculated Volume: (dm³) 11.04
Size: 200 x 230 x 240mm
Weight: 4.5kg
