Description

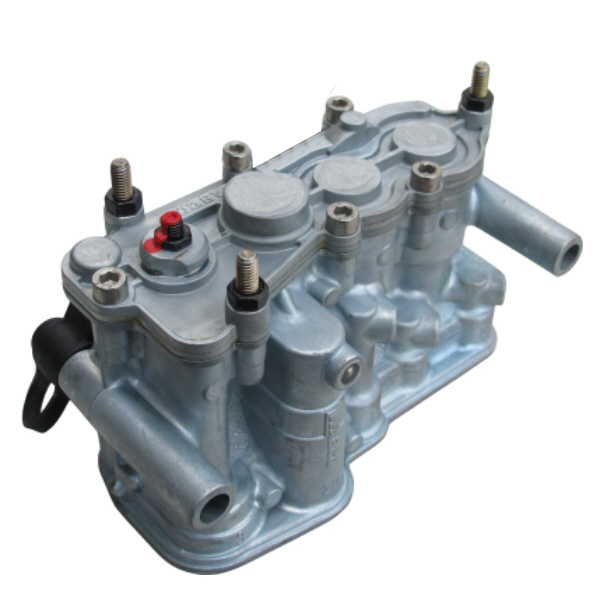

Lift Axle Control Valve, Electrical

Bolt lengths: 12.0 mm
Electrical connection: M27 x 1
Max. operating pressure: 13.0 bar
Port thread 1: M16 x 1.5
Port thread 2: M22 x 1.5
Port thread 21: M16 x 1.5
Port thread 22: M16 x 1.5
Port thread 23: M16 x 1.5
Port thread 24: M16 x 1.5
Port thread 3: Flap exhaust
Port thread 41: M16 x 1.5
Port thread 42: Test connection
Rated current: 220 mA
Temperature range: -40°C to +80°C
Type: LACV
Version: Dual-circuit
Voltage: 24 V
